Land defence

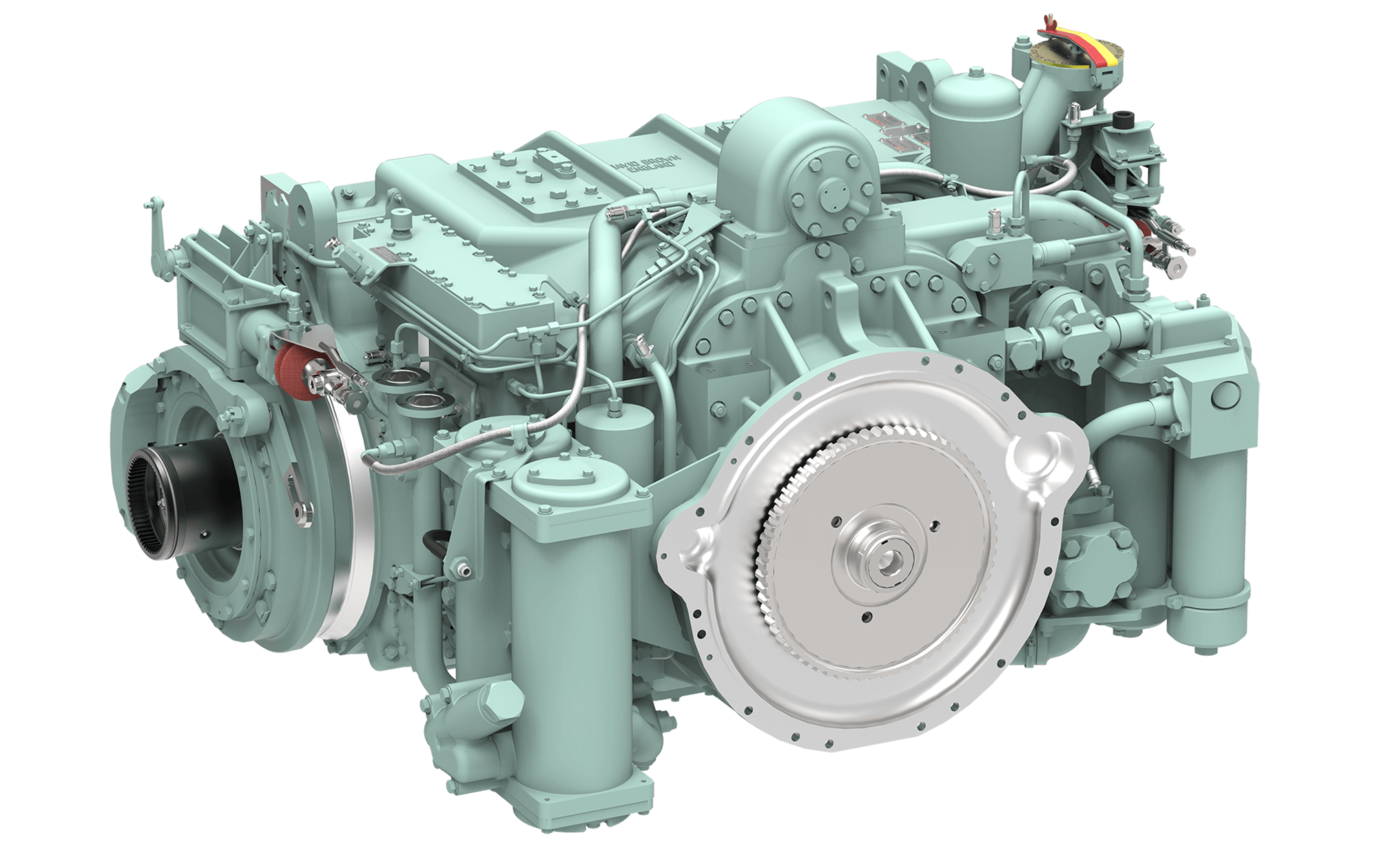

TN54E Tracked Vehicle Transmission

DB Defence has extensive experience in the design and manufacture of high performance TN54E gear systems for tracked vehicles, such as the famous Challenger 2 and 3 Main Battle Tanks, CRARRV recovery vehicle, as well as Trojan/Titan engineering vehicles.

Walks the walk, talks the torque.

Our proven designs are currently in service with the British Army and the Royal Army of Oman.

- The TN54 transmission features six forward and two reverse gears at a rating of 1200bhp, with an option to increase the power to 1500bhp.
- - Custom designed fully automatic transmission for tracked wheeled vehicles
  - Six forward and two reverse gears at a rating of 1200 bhp with the option to increase power to 1500 bhp if required
  - Drive transmitted from the engine through a splined coupling close coupled to the engine
  - Epicyclic change speed section with multi-plate clutches
  - Single input and two in-line outputs at right angles to the input
- - Length - 1169mm
  - Height - 847mm (excluding PTO)
  - Width - 1536mm (excluding coupling)
  - Net dry weight - 2390kg
