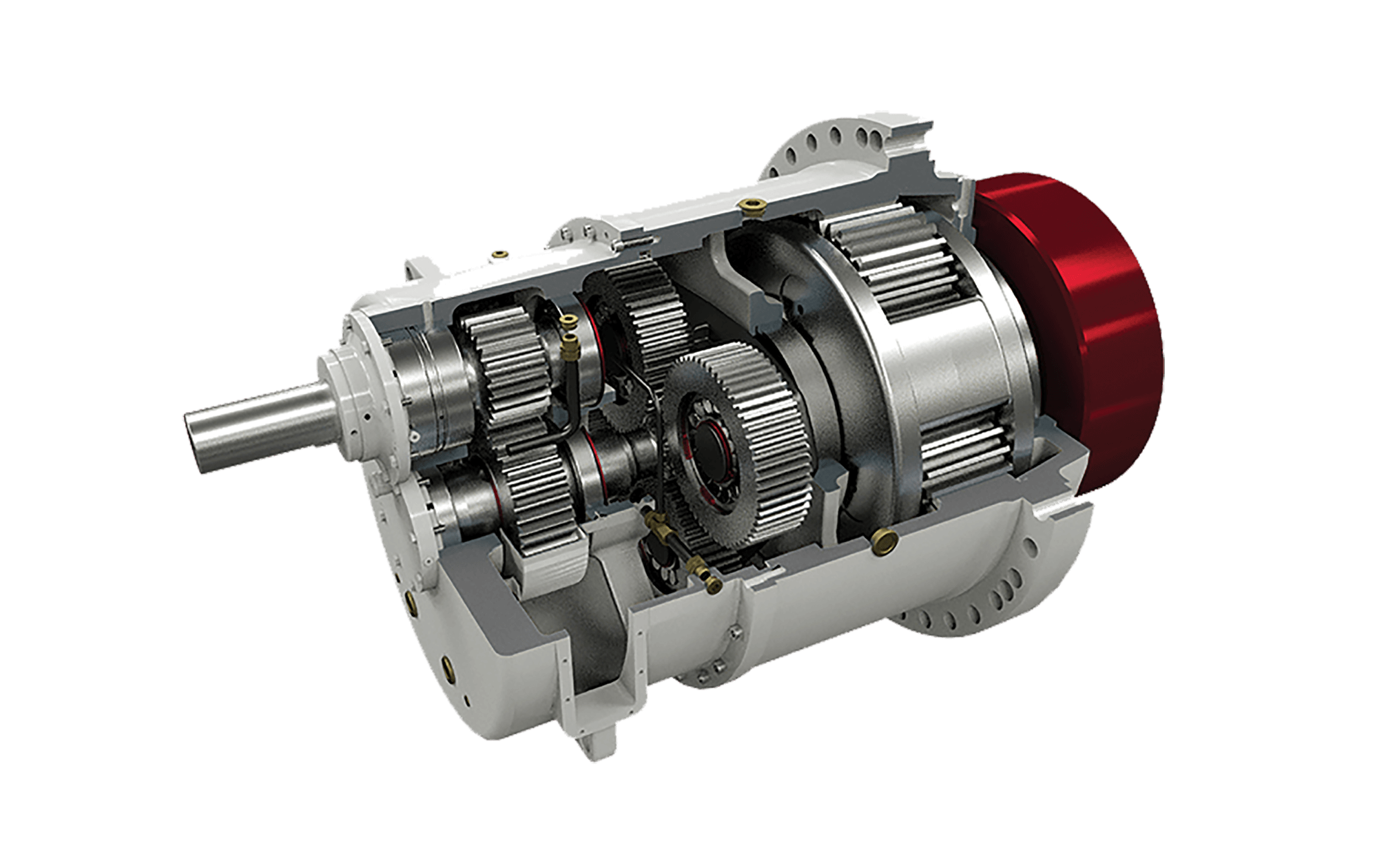

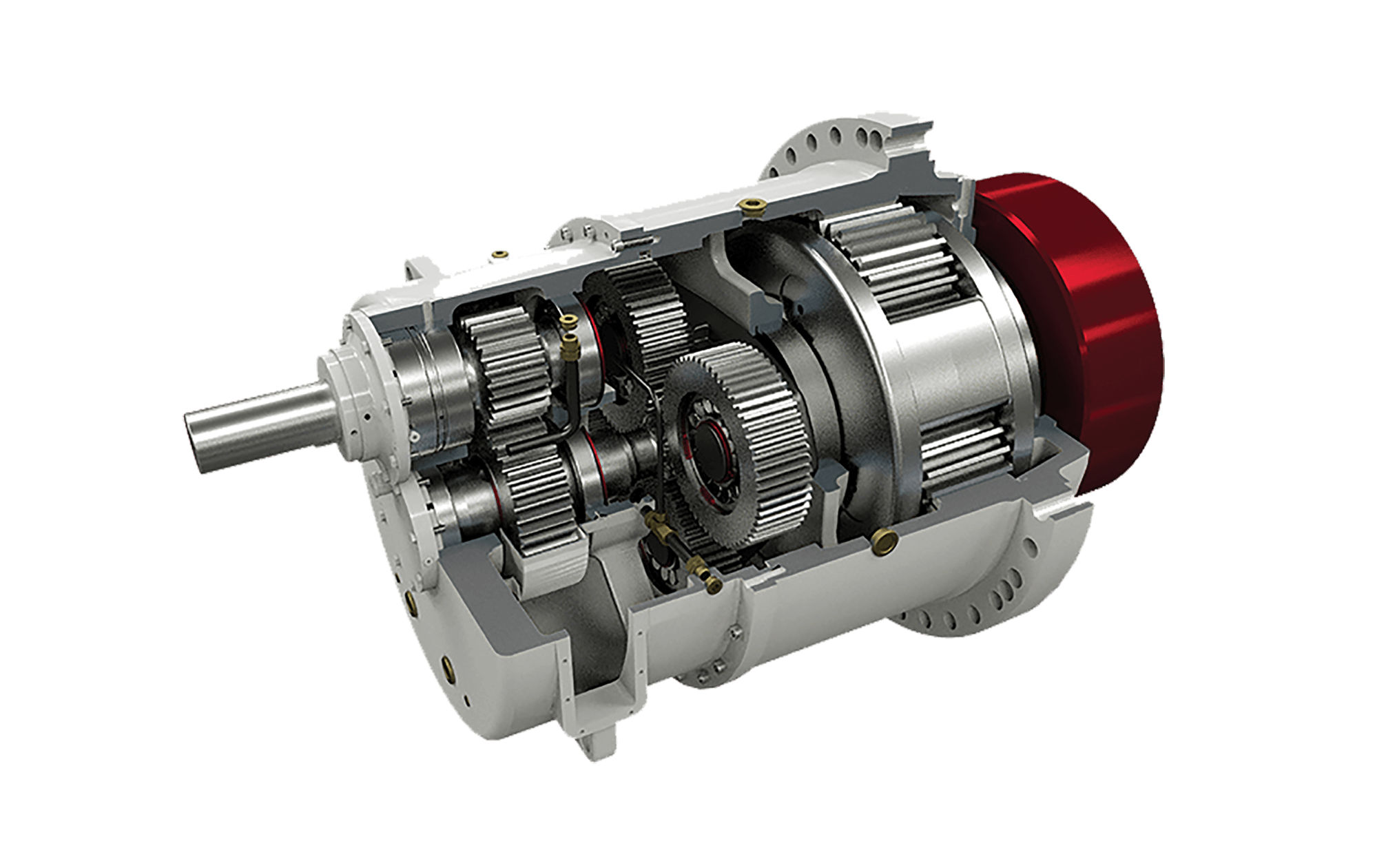

Quatro Planetary Gearing for Sugar Beet

Quatro offers higher torque without the need to increase gear unit size or weight and delivers even more for your investment. Sugar beet processing applications for Quatro gearboxes include; extraction towers, pulp presses and cossette mixers.

• David Brown Santasalo is one of the few gear specialists who can manufacture loose gears of any size globally
• All gears are designed to the latest major international standards, including ISO, DIN, APV and AGMA
• Combines high quality, adaptability and reliability for maximum availability

Extraction Tower Gearboxes:

• Coaxial Quatro planetary gear system
• Vertical mounting
• Segmented girth gear with 3-10 drives per gear
• Drive system ratio up to 8,000:1
• Gear ratios up to 290:1
• Motor power up to 75 kW
• Pinion carriage with spring support
• Tower shaft torque up to 20,000,000 Nm

 Pulp Press Gearboxes:

• Coaxial Quatro planetary gear units
• Vertical mounting
• Steel girth gear with 6-10 drives per gear
• Drive system ratio 2,400:1
• Gear ratio up to 290:1
• Motor power up to 75 kW
• Shaft torque up to 8,000,000 Nm

Cossette Mixer Gearboxes:

• Four or five stage bevel helical planetary gear units from our Quatro range
• Horizontal mounting
• Shaft mounted
• Single or double site torque arm
• Hollow shaft with shrink disc
• Oil circulating lubrication system
• Ratio up to 1,500:1
• Output torque up to 1,400,000 Nm

Crystalliser Gearboxes:

• Four stage coaxial or bevel helical Quatro planetary gear unit
• Vertical mounting position
• Shaft mounted
• Hollow shaft with shrink disc
• Oil compensating tank
• Up to 4,500:1 ratio
• Output torque up to 1,400,000 Nm
