Why do mining conveyor gearboxes fail - and how can it be prevented?

In mining operations, conveyor gearboxes are expected to run continuously under high loads in harsh and often unpredictable environments. When they fail, the consequences are rarely minor.

Downtime doesn’t just impact a single asset, it can bring entire material handling processes to a halt, disrupting production, increasing costs, and placing significant pressure on maintenance teams.

In most cases, gearbox failures are not sudden, isolated events. They develop over time as small issues, such as misalignment, lubrication breakdown, or fluctuating loads, gradually escalate into critical damage. Understanding where these issues originate, and addressing them early, is key to improving conveyor reliability and long-term performance, particularly in high-tonnage or remote mining environments.

What are conveyors, and how are they used in the mining industry?

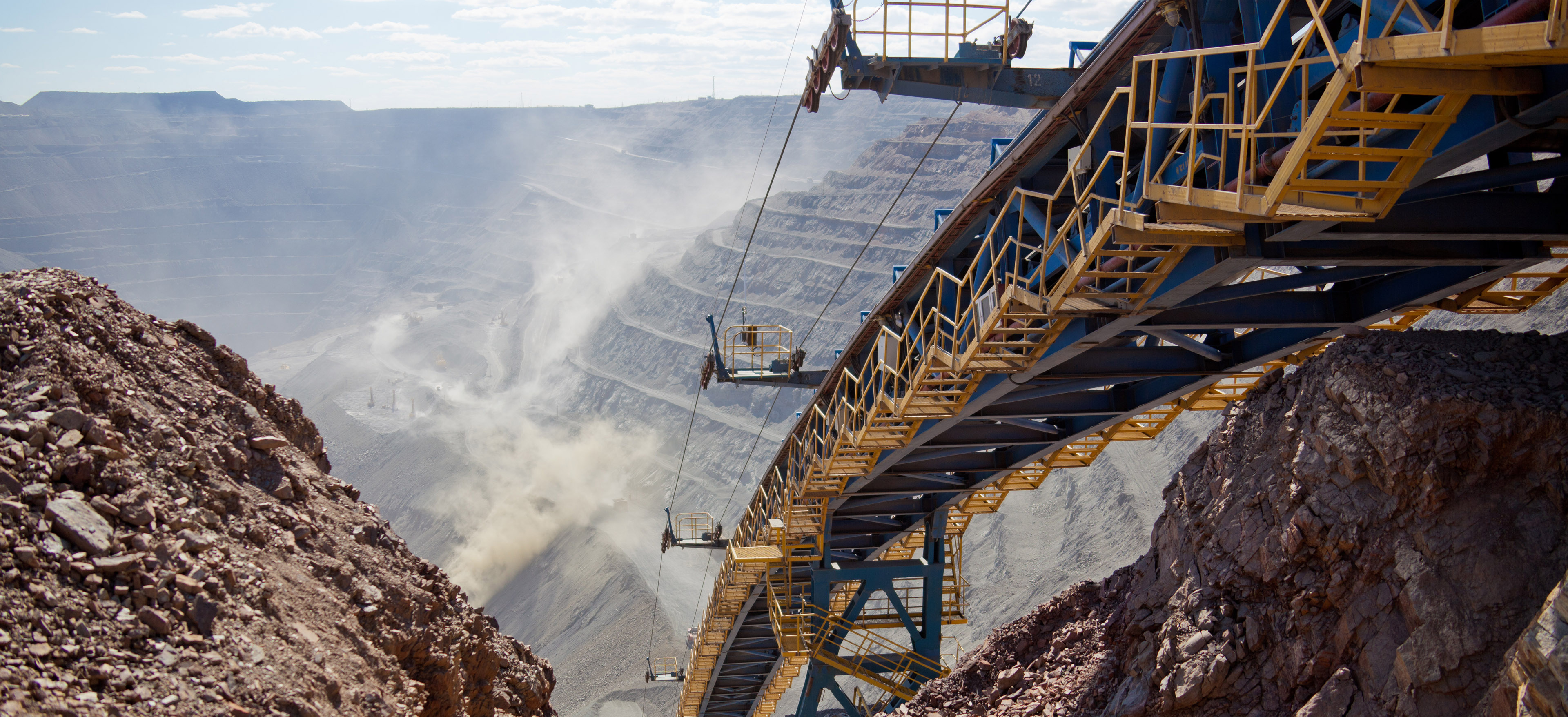

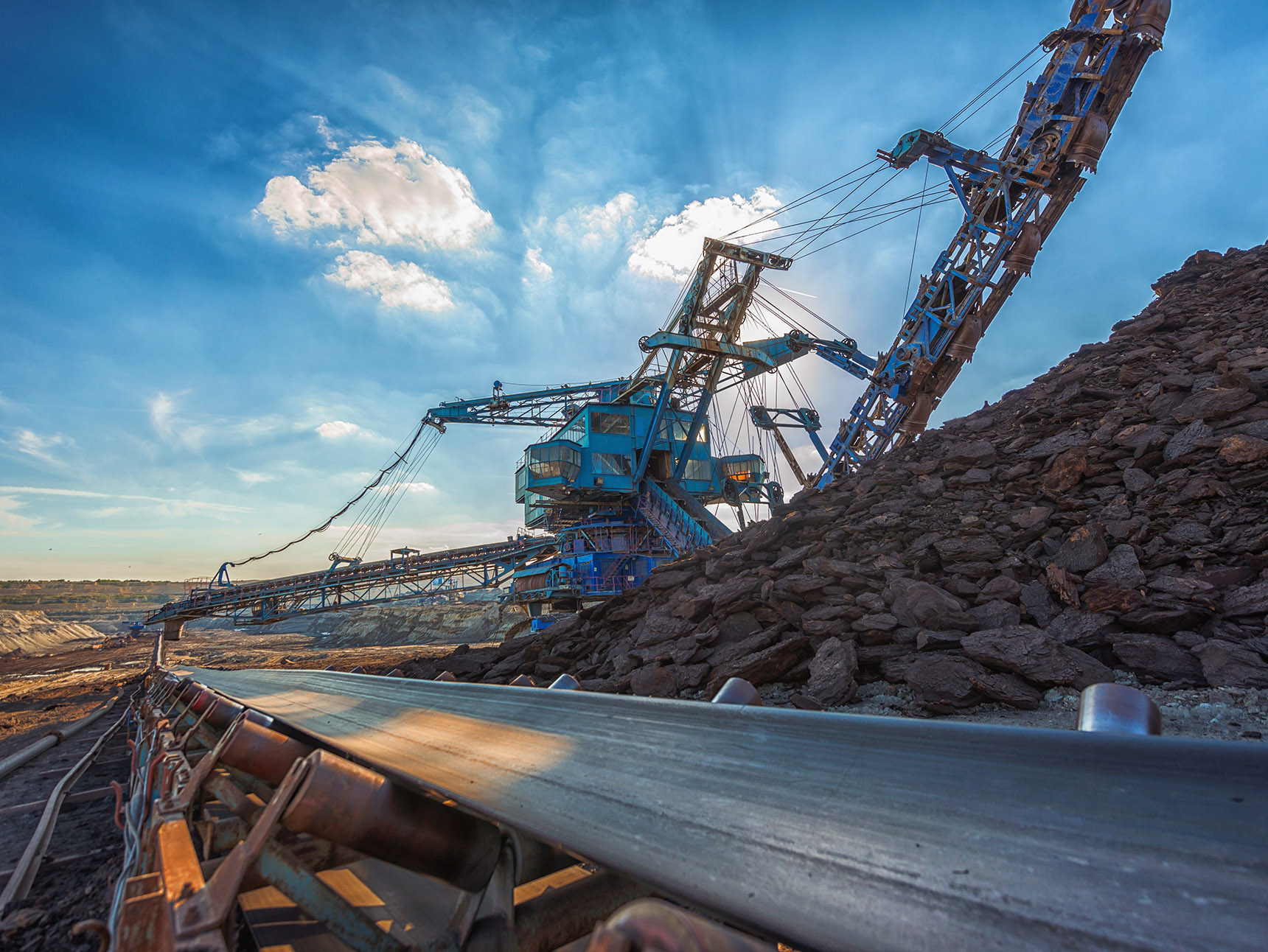

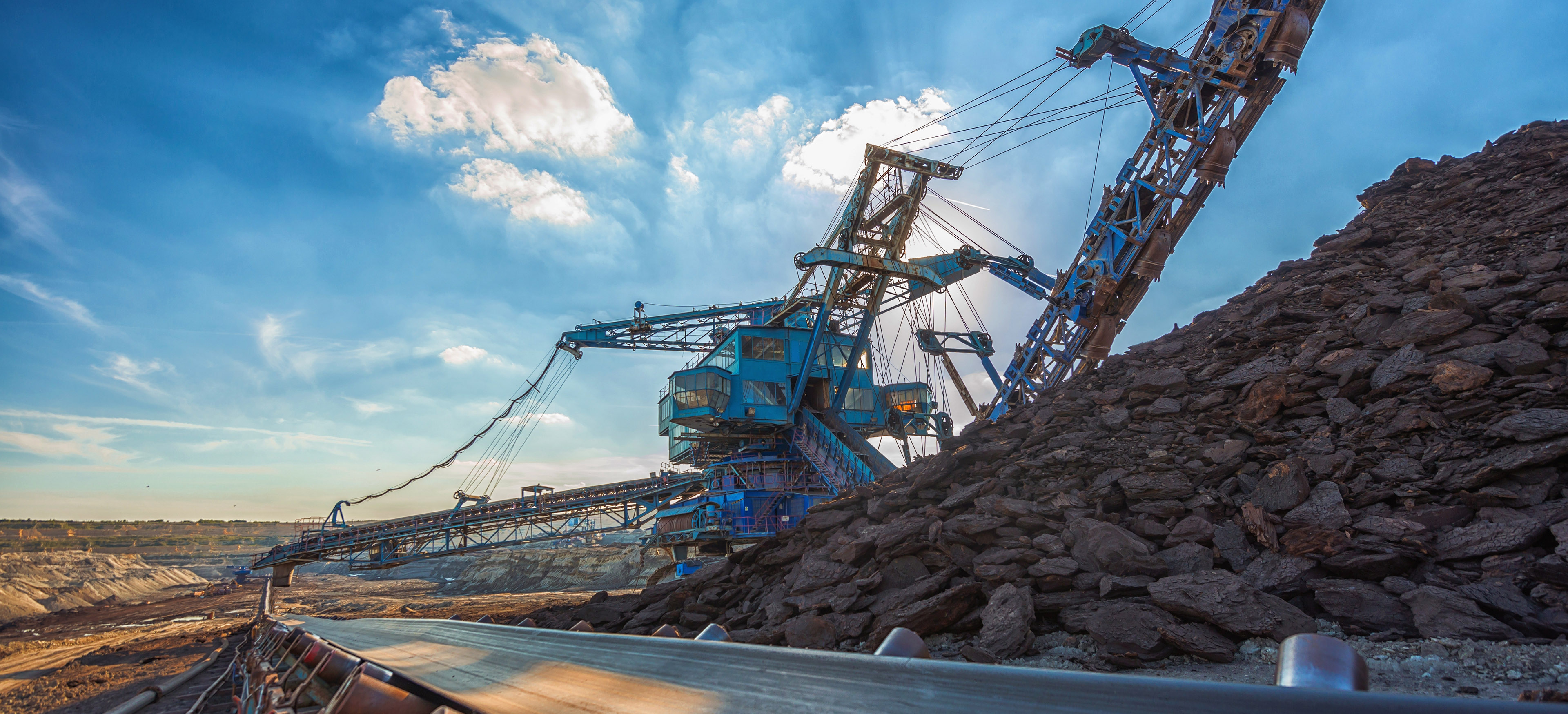

Conveyors are a critical component of mining infrastructure, used to transport bulk materials such as ore, coal, aggregates, and overburden across large distances. From in-pit crushing systems to overland conveyors and stockyard handling, these systems enable continuous material flow, often replacing or reducing the reliance on truck haulage - particularly in large-scale or remote operations where efficiency is critical.

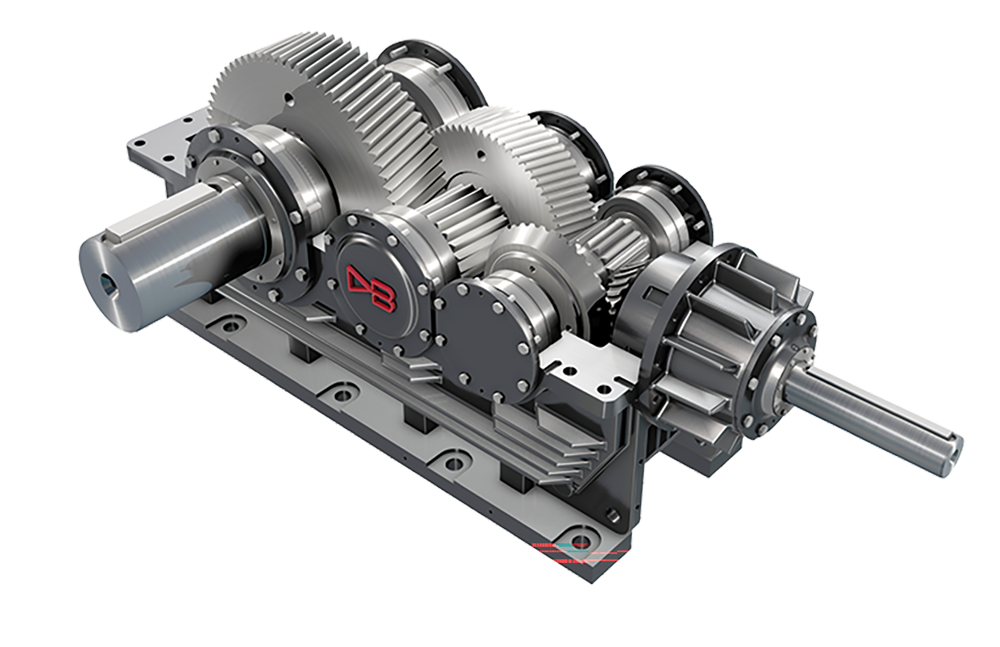

At the heart of most conveyor drive system sits the gearbox, responsible for converting motor input into the torque required to move heavy loads efficiently. These gearboxes must operate under demanding conditions, including:

• High and variable loads
• Continuous duty cycles (often 24/7 operation)
• Frequent start-stop or transient loading events
• Exposure to dust, moisture, and temperature extremes

The common causes of gearbox failures

While gearbox designs are inherently robust, failures typically occur due to a combination of operating conditions and maintenance factors, rather than a single point of weakness.

1. Misalignment - Improper alignment between motor, gearbox, and conveyor pulley introduces uneven loading across gear teeth and bearings. Over time, this leads to increased vibration, premature wear, and eventual component failure.
2. Inadequate or contaminated lubrication  - Lubrication plays a critical role in reducing friction and dissipating heat. Contaminants such as dust, water ingress, or degraded oil can significantly reduce lubrication effectiveness, accelerating gear and bearing wear.
3. Overloading and shock loads - Mining conveyors are often subject to sudden load variations, blockages, or start-up stresses. If gearboxes are not designed or maintained to handle these conditions, excessive torque can cause tooth damage, shaft failure, or bearing fatigue.
4.  Thermal stress and overheating - Poor heat dissipation or excessive operating temperatures can break down lubricant properties and lead to thermal expansion issues, reducing clearances and increasing wear rates.
5. Installation and assembly errors - Incorrect mounting, improper torque settings, or inadequate foundation support can introduce stresses from the outset, reducing the operational lifespan of the gearbox.
6. Progressive wear and lack of condition monitoring - Without regular inspection and monitoring, minor issues such as pitting, micro-cracking, or bearing degradation can go unnoticed until they escalate into major failures.
7. Premature bearing wear - While bearings are designed for long operating life, harsh duty cycles, high loads, and suboptimal lubrication or alignment can significantly reduce their lifespan. This leads to recurring maintenance interventions, increased costs, and reduced overall gearbox reliability.
8. Thermal limitations in high ambient environments - In regions with high ambient temperatures, gearboxes can struggle to dissipate heat effectively. Elevated operating temperatures accelerate lubricant degradation and increase wear rates, often requiring the use of external cooling systems. However, these solutions can be difficult to implement and maintain in remote mining operations, adding additional complexities.

The early warning signs

Gearbox failures are often preceded by subtle performance changes. Recognising these early allows intervention before critical breakdown. Common warning signs include:

• Increasing operating temperatures
• Visible oil leaks or seal degradation
• Rising vibration levels or unusual noise
• Irregular load behaviour or unexpected torque spikes
• Oil contamination or presence of metallic particles in oil samples

Monitoring these indicators, particularly in remote or high-duty conveyor systems, is a key part of effective predictive maintenance strategies.

Prevention over cure

Preventing gearbox failure in mining conveyors is not about a single solution - it requires a proactive, system-wide approach that combines design, installation, and ongoing maintenance strategies.

1. Precision alignment and installation - Ensuring accurate alignment during installation, and verifying it periodically, reduces unnecessary mechanical stress and improves load distribution across components.
2. Effective lubrication management:
   - Maintain proper oil levels and filtration
   - Use the correct lubricant specification for operating conditions
   - Implement regular oil analysis to detect contamination or degradation early
3. Load management and system design - Designing conveyor systems with appropriate service factors, soft start mechanisms, and overload protection helps reduce the impact of transient and shock loads on gearboxes.
4. Condition monitoring and predictive maintenance - Technologies such as vibration analysis, temperature monitoring, and oil diagnostics allow operators to detect early signs of failure and intervene before critical damage occurs.
5. Environmental protection - Sealing solutions, breathers, and protective enclosures help minimise the ingress of dust, dirt, and moisture, all of which are common contributors to gearbox degradation in mining environments.
6. Regular inspection and maintenance planning - Structured maintenance schedules, combined with periodic inspections, ensure that wear patterns, alignment shifts, or lubrication issues are identified and addressed early.

Understanding these failure mechanisms also plays an important role in determining whether a gearbox can be repaired effectively or requires full replacement, helping operators make informed lifecycle decisions.

The advantages this approach brings

Taking a proactive approach to gearbox reliability doesn’t just prevent failures, it delivers measurable operational benefits across the entire conveyor system:

•  Reduced unplanned downtime and production losses
• Extended gearbox service life and lower lifecycle costs
• Improved reliability of critical conveyor systems
• Early detection of wear and potential failure points
• Optimised maintenance planning and resource allocation
• Better performance under variable and high-load conditions

The future of the mining industry

As mining operations push for greater efficiency and throughput, the reliability of conveyor systems is becoming increasingly critical. Digital monitoring, predictive maintenance strategies, and more advanced gearbox designs are already reshaping how operators approach asset management. Rather than reacting to failures, the industry is moving toward anticipating them, using data and engineering insight to optimise performance and reduce risk. Ultimately, gearbox reliability is not just a maintenance concern - it’s a critical factor in overall mine productivity and cost control.
